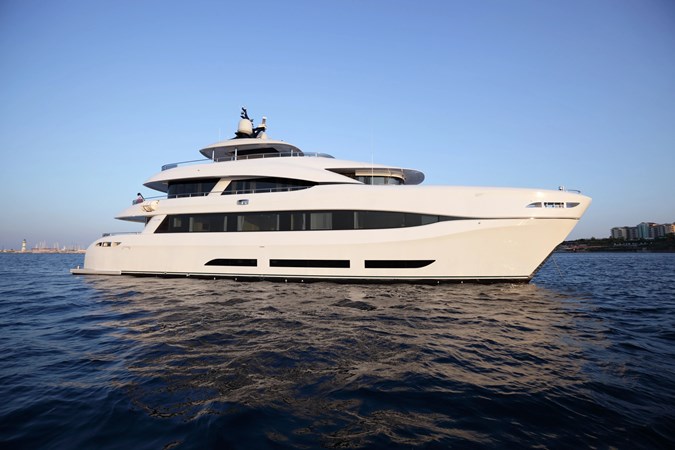

CURVELLE 34m Specifications
Type: Catamaran
Year Built: 2013
Hull Material: Carbon Hybrid
Length: 34.1m / feet
Beam: 9 / 29.53 feet
Max Draft: 2.45 / 8.04 feet
Gross Tonnage: 298
Cruising Speed: 12 knots
Max Speed: 18 knots
Sleeps: 12
Staterooms: 6
Crew: 6
Exterior Design: Lila Lou
Interior Design: Lila Lou
Engines: 2 x Caterpillar C32 ACERT 1900hp
Location: Montenegro, Tivat


EUR 6,950,000

Curvelle Quaranta is the manifestation of an ambitious project of naval architects, designers and engineers from the UK, Australia and Netherlands.

A unique concept that combines the best features of both a superyacht and a power catamaran. it brings together the advantages of both types of boats into one unique design.

The double hull configuration (constructed of carbon fibre and epoxy) provides the stability and abundance of space you’d expect from a much longer yacht. In terms of stability, it’s an interesting fact that the combination of twin hull configuration and use of the NAIAD stabilisation system has resulted in zero reported instances of guests ever getting sea-sick.

Her six convertible cabins are her signature feature. And such a feature allows you to personalize and customize her layout based on the needs of you, your guests, and your itinerary. All cabins are en-suite and have been inspired by and modelled after luxury cruise ships. And every room is equally flooded in natural light and wonderful views can been seen through her large panoramic windows (which are 2.7m by 0.9m wide).

Another interesting point is that Curvelle Quaranta was built to the highest safety standards: RINA Classification MCA-LY2. A form of commercial classification denoting “excellence behind excellence.

Request Details

Name *
Email *
Tel. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.


  • One-of-a-kind superyacht-catamaran built by a visionary owner
  • 6 cabins for 12 guests, all on the main deck, with the unique concept of connecting doors
  • RINA certified as a commercial vessel with unrestricted navigation
  • Large volume of 298gt and a beam of 9 metres
  • Fully submersible beach platform with a potential to carry 1000kg (5.5m tender)
  • Has been honoured with 8 awards for her engineering, quality and design.








Main Machinery

  • Main Engines: 2 x 1900 HP Caterpillar C32 ACERT
  • Engine Hours: Port 1845 hrs, Starboard 1845 hrs (May 2023)
  • Gear Boxes: ZF 3050A, with trolling and trailing valves


Generators & Electricity

  • Generators: 2 x 50 kw @ 50Hz ONAN (John Deere)
  • Generator Hours: ±7500 hrs (May 2023)
  • Electricity on board: 400V/230V 50 Hz
  • Batteries: 4 banks of batteries, 24 Volts


Auxilary Machinery

  • Steering System: DATA hydraulic NFU & FFU
  • Bow Thruster: 2 x DATA 40 HP Sidepower Units
  • Stabilizers: NAIAD Full RCS (Ride Control System) with 2 Trim Tabs & 2 T-Foils


Fuel and Oil System

  • Fuel Filters: Alfa Laval
  • Fuel Pumps: Gianneschi
  • Sewage Treatment Plant: Tecnicomar ECOMAR 16


Fresh Water System

  • Fresh Water Makers: 2 x Idromar MC4 Duplex , 250 Litres  each
  • Fresh Water Filters, Heater and Pump: Gianneschi

AC & Ventilation System

- Air Conditioning:

  • Heinen & Hopman, 200,000 BTUs
  • Ventilation system takes fresh air
  • Central chillers have reversible system for heating

- Air Compressor:

  • 1 x Atlas Copco


Deck Machinery & Equipment

  • Anchor: 2 x SHHP Ultra Anchor 316 stainless steel
  • Anchor Chains: 2 x 120m, 16mm Grade 2
  • Davits: DATA 250 kg lifting capacity, 6 fixing points throughout the yacht
  • Gangway: Sanguineti Chiavari
  • Winches: Electric
  • Aft hydraulic swim platform: DATA 1000 kg lifting capacity



navigation systems

  • Radar: 2 x Sperry Marine Vision Master with Hatteland Display
  • Gyrocompass: Sperry Marine
  • Auto Pilot: NAVIPILOT 4000
  • DGPS: 2 x SAAB GPS Navigator
  • GMDSS: McMurdo
  • NAVTEX: McMurdo
  • Speed log: Sperry marine 0098-11
  • Depth Sounder: ELAC LAZ 5100
  • Plotter: Jeppesen
  • Wind-Speed Log: Sailor


security equipment

  • Satellite: ESAT
  • INMARSAT: Sailor
  • VHF: 3 x Sailor VHF
  • SART: McMurdo
  • EPIRB: 2 x Sailor
  • AIS: EasyView


entertainment, av and it systems

  • Audio Equipment: Ceiling speakers on all decks
  • Video Equipment: Samsung TVs with ROKU boxes
  • AV system: Control 4 with Ipad and ROKU boxes


safety, fire and security equipment

  • Alarm System: Consilium
  • CCTV System: Chrisv
  • Cameras: 6 x ER Cameras
  • Monitors: 2 (wheelhouse and crew mess)
  • Fire Extinguishers: 27 pax
  • Fire Suppression: Consilium
  • Fire Pumps: 2 x Gianneschi ACB 531/B (1 per ER)
  • Life Rafts: 2 x Zodiac 20 pax - expiration in 2033
  • Life Rings: 4
  • EPIRBS: 2 x Sailor
  • Flares: 16
  • Life jackets: 31
  • Medical boxes: 3 boxes


galley equipment

  • Dump waiter: Serving 2 decks - upper salon and sundeck
  • Stove: Siemens  5 burners
  • Oven: Bosch (big), Siemens (small)
  • Microwave Oven: Siemens
  • Refrigerator: 2 x Electrolux
  • Freezer: 2 x Electrolux
  • Ice Maker: 3 x Electrolux
  • Hood: Commercial grade
  • Dishwasher: Siemens
  • Washing Machine: 2 x Miele Washer
  • Dryer: 2 x Miele Dryer
  • Trash Compactor: Broan


tenders and toys:

  • 2017 Williams 520
